Satellite Multiple Access Techniques: TDMA, FDMA, CDMA, and Emerging Schemes

Satellites play a crucial role in global communications, enabling connectivity across vast distances where terrestrial networks are impractical. To maximize the efficiency and effectiveness of satellite communications, various multiple access techniques are employed. These techniques allow multiple users to share the satellite’s communication resources. This article explores Time Division Multiple Access (TDMA), Frequency Division Multiple Access (FDMA), Code Division Multiple Access (CDMA), and other emerging schemes, highlighting their advantages, disadvantages, and design considerations.

Satellites serve as crucial communication nodes, interconnecting various users in a network as flexibly as possible. There are fundamentally  two approaches to improving the ability of a satellite to support communications traffic. One way is to seek technological improvements toward increasing ElRP (effective radiated power referenced to isotropic), or to provide more bandwidth (there is great interest in developing the 30/20 GHz band for satellite communications).

The second approach is to make the allocation of the CR more efficient. This second approach is  the domaino of communications multiple access. Given the demand for simultaneous access by potentially hundreds of users, multiple access techniques are essential for efficiently allocating the satellite’s fixed communication resources.  These techniques must handle a variety of bit and message rates, and diverse traffic requirements, making the challenge of accessing the satellite more complex.

Multiple Access in Satellite Communications

The satellite repeater is composed of multiple adjacent channels, known as transponders, each with a bandwidth that is a fraction of the total repeater bandwidth. In terms of multiple access, there are two key considerations:

  1. Multiple Access to a Particular Repeater Channel (Transponder): This involves managing access to individual transponder channels.
  2. Multiple Access to a Satellite Repeater: This involves managing access to the overall satellite repeater, encompassing all transponder channels.

Channel and Repeater Access

Each satellite repeater channel (transponder) amplifies all carriers within its passband when it is operational. The resource offered by each channel can be visualized as a rectangle in the time-frequency plane. Without special precautions, carriers would occupy this rectangle simultaneously, leading to mutual interference. To prevent this, receivers (either an earth station receiver for a transparent satellite or an onboard satellite receiver for a regenerative satellite) must be able to discriminate between the received carriers.

A mechanism must be employed whereby the multiple signals can access the CR without creating interference to each other in the detection process. The avoidance of such interference requires that signals on one CR channel do not increase the probability of error in another channel. It should be obvious that orthogonality of the signals on separate channels suffices to avoid interference between users. The

Frequency Division Multiple Access (FDMA)

FDMA allocates different frequency bands to different users. Each user has a dedicated frequency channel for the duration of the communication session.

The bandwidth of a repeater channel is divided into sub-bands; each sub-band is assigned to one of the carriers transmitted by the earth stations in the network according to their traffic requirement. . If the spectra of the carriers each occupy a different sub-band, the receiver can discriminate between carriers by filtering. This is the principle of frequency division multiple access (FDMA)

With this type of access, the earth stations transmit continuously and the channel conveys several carriers simultaneously at different frequencies. It is necessary to provide guard intervals between each band occupied by a carrier to avoid interference as a result of imperfections of oscillators and filters. The receiver selects the required carrier in accordance with the appropriate frequency.

The channel transmits these to all the earth stations situated in the coverage area of the satellite antenna. The carriers must be filtered by the receiver at each earth station and this filtering is easier to realise when the carrier spectra are separated from each other by a wide frequency guard band. However, the use of wide guard bands leads to inefficient use of the channel bandwidth and a higher operating cost, per carrier, of the space segment. There is, therefore, a technical and economic compromise to be made. Whatever the compromise chosen, part of the power of a carrier adjacent to a given carrier will be captured by the receiver tuned to the frequency of the carrier considered. This causes noise due to interference, called adjacent channel interference (ACI).

Satellite repeater channel has a non-linear transfer characteristic. In general, when multiple signals at different frequencies pass through a non-linear amplifier, the output contains not only the N signals at the original frequencies but also undesirable signals called intermodulation products. When the center frequency of the passband amplifier is large compared with its bandwidth, which is the case for a satellite repeater channel (compare the center frequency of several GHz to the bandwidth of a few tens of MHz), only the odd order intermodulation products, fall within the amplifier bandwidth. Moreover, the amplitude of the intermodulation products decreases with the order of the product. Hence, in practice, only products of order 3, and to a lesser extent 5, are significant.

Advantages:

  • Continuous Transmission: Users can transmit continuously without waiting for time slots.
  • Low Latency: Reduced latency compared to TDMA as there is no need to wait for time slots.
  • Simplicity: Simple and reliable, with each user operating independently on different frequencies.

Disadvantages:

Frequency division multiple access (FDMA) is characterised by continuous access to the satellite in a given frequency band. This technique has the advantage of simplicity. However, it has some disadvantages:

  • Bandwidth Inefficiency: Fixed allocation of frequency bands can lead to inefficient use of available spectrum.
  • Interference: Requires careful management of frequency assignments to prevent adjacent channel interference.
  • Scalability: Limited by the number of available frequency bands.
  • Lack of flexibility in case of reconfiguration: to accommodate capacity variations it is necessary to change the frequency plan and this implies modification of transmitting frequencies, receiving frequencies and filter bandwidths of the earth stations.
  • Loss of capacity when the number of accesses increases due to the generation of intermodulation products and the need to operate at a reduced satellite transmitting power (back-off). As the number of carriers increases, the power available to each carrier reduces, and this implies use of forward error correction (FEC) schemes to maintain the target bit error rate (BER) at the demodulator output of each carrier. The throughput of each carrier decreases, and so does the total throughput which is the sum of the throughputs of the individual carriers.
  • The need to control the transmitting power of earth stations in such a way that the carrier powers at the satellite input are the same in order to avoid the capture effect. This control must be performed in real time and must adapt to attenuation caused by rain on the uplinks.

Design Considerations:

  • Frequency Planning: Efficient frequency planning to minimize interference and maximize spectrum utilization.
  • Channel Spacing: Adequate spacing between channels to prevent interference.
  • Power Control: Managing power levels to avoid crosstalk and interference between users.

Time Division Multiple Access (TDMA)

TDMA divides the available bandwidth into time slots. Each user is assigned a specific time slot during which they can transmit or receive data. This method ensures that multiple users can share the same frequency channel without interference.

According to this multiple earth stations transmits at the same frequency but in different time slots, that is entire frequency band is divided on the basis of time that is, one user will use the complete frequency band for a given time slot and another user will use the same frequency band for some other time slot. The earth stations transmit one after another bursts of carrier with duration TB. All bursts of carrier have the same frequency and occupy the full repeater channel bandwidth.

Hence the satellite repeater channel carries one carrier at a time. Bursts are inserted within a periodic time structure of duration TF, called a frame. The earth station receives traffic in the form of a continuous binary stream of rate Rb from the network or user interface. This information must be stored in a buffer memory while waiting for the burst transmission time. The burst  consists of a header, or preamble, and a traffic field.

The reference station is the station which defines the frame clock by transmitting its reference burst; all the network traffic stations must synchronise themselves to the reference station by locating their burst with a constant delay with respect to the reference station burst, called the reference burst. The receiving station identifies the start of each burst of the frame by detection of the unique word; it then extracts the traffic which is intended for it and is contained in a sub-burst of the traffic field of each burst.

Advantages:

  • Efficient Use of Bandwidth: TDMA allocates bandwidth dynamically based on time slots, reducing idle times.
  • Simplicity: Easier to implement and manage compared to more complex schemes.
  • Synchronization: Simplified management of user data due to well-defined time slots.
  • At each instant, the satellite repeater channel amplifies only a single carrier which occupies all of the repeater channel bandwidth; there are no intermodulation products and the carrier benefits from the saturation power of the channel.
  • TDMA efficiency remains high for a large number of accesses.
  • There is no need to control the transmitting power of the stations.
  • All stations transmit and receive on the same frequency whatever the origin or destination of the burst; this simplifies tuning.

Disadvantages:

  • Synchronization Issues: Requires precise timing synchronization, which can be challenging. The need for synchronization implies complex procedures and the provision of two reference stations. Fortunately, these procedures can be automated and computer-driven.
  • Latency: Potential delays due to waiting for the assigned time slot, which can be problematic for real-time applications.
  • Scalability: Limited by the number of available time slots, potentially reducing scalability.
  • The need to increase power and bandwidth as a result of high burst bit rate, compared to continuous access, as with FDMA, for instance.

Overall, TDMA implies more costly equipment at the earth stations. The cost of this equipment is, however, compensated by better utilisation of the space segment due to the higher efficiency in the case of a large number of accesses.

Design Considerations:

  • Synchronization: Accurate and reliable timing mechanisms are essential.
  • Slot Allocation: Efficient algorithms for dynamic slot allocation to accommodate varying traffic loads.
  • Guard Intervals: Implementing guard intervals to prevent overlapping and interference between slots.

Code Division Multiple Access (CDMA)

CDMA allows multiple users to share the same frequency band by assigning unique codes to each user. These codes are used to spread the user’s signal across the entire bandwidth, enabling multiple signals to coexist. The technique is used for applications such as
privacy, signal covertness, interference rejection, time delay Or ranging measurements, selective addressing, and multiple access (CDMA).

With code division multiple access (CDMA), network stations transmit continuously and together on the same frequency band of the satellite repeater channel. There is, therefore, interference between the transmissions of different stations and this interference is resolved by the receiver which identifies the ‘signature’ of each transmitter; the signature consists of a binary sequence, called a code, which is combined with the useful information at each transmitter.

Transmission of the code combined with the useful information requires the availability of a greater radio-frequency bandwidth than that required to transmit the information alone hence also called spread spectrum transmission. Multiplication of S1 (t) (Carrier modulated with information ) by g1 (t) (code function) produces a signal whose spectrum is the convolution of the spectra of the two component signals. Thus, if the signal S1(t) is relatively narrowband compared with the code or spreading signal g l ( t ) , the product will have nearly the bandwidth of gl(t).

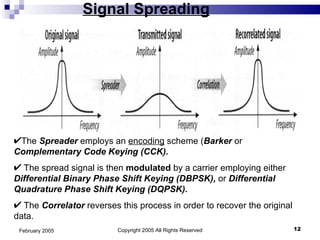

Spread spectrum modulation | PPT

If the code functions g i ( t ) , where i = 1 , 2 , . . . , n, are chosen with orthogonal properties, then the desired signal can be extracted perfectly by multiplication with g l ( t ) , and the unwanted signals yielding zero terms are easily rejected.

Two techniques are used in CDMA: —direct sequence (DS); and —frequency hopping (FH). The first is called direct sequencing or
pseudonoise spread spectrum. Spreading is achieved through the multiplication of the data by a binary pseudorandom sequence  whose
symbol rate is many times the data rate. The second technique uses a frequency-hopping carrier. The carrier remains at a given frequency for a duration, and then hops to a new frequency somewhere in the spreading bandwidth W.

Frequency hopping is generally classified as slow or fast hopping. In the case of slow hopping, there are typically several bits per hop, and the bandwidth of the transmitted signal is equal to that of the data signal. In the case of fast hopping, there are typically several hops per bit, and the bandwidth of the transmitted signal is equal to the reciprocal of the hopping duration.

Advantages:

  • High Capacity: Can accommodate more users within the same bandwidth compared to TDMA and FDMA.
  • Robustness: Resistant to interference and multipath fading. It offers useful protection properties against interference from other systems and interference due to multiple paths; this makes it attractive for networks of small stations with large antenna beamwidth and for satellite communication with mobiles.
  • Security: Provides a level of inherent security due to the unique codes.
  • It is simple to operate since it does not require any transmission synchronisation between stations. The only synchronisation is that of the receiver to the sequence of the received carrier.
  • With multibeam satellites, it offers the potential of 100% frequency re-use between beams

Disadvantages:

  • Complexity: More complex to implement and manage due to code generation and management.
  • Power Control: Requires effective power control to prevent the near-far problem (stronger signals drowning out weaker ones).
  • Processing Requirements: High processing power needed for encoding and decoding.
  • The main disadvantage is the poor efficiency, of the order of 10%, as a large bandwidth of the space segment is used for a low total network capacity with respect to the throughput of a single unspread carrier. This comment applies only in a single beam network. The possibility of reusing frequency between adjacent beams improves greatly the overall efficiency. Another limitation consists in the limited number of codes (and therefore the number of simultaneous users) offering the required performance in term of inter-correlation properties.

Design Considerations:

  • Code Management: Efficient generation and management of unique codes for each user.
  • Power Control: Implementing robust power control mechanisms to maintain signal quality.
  • Interference Management: Techniques to minimize cross-correlation and interference between users’ codes.

SDMA and PDMA

In satellite communications, efficiently managing the allocation of limited resources among a large number of users is crucial. Two additional multiple access schemes that have proven beneficial are Space Division Multiple Access (SDMA) and Polarization Division Multiple Access (PDMA). These techniques further enhance the capacity and flexibility of satellite systems by exploiting spatial and polarization dimensions, respectively.

Space Division Multiple Access (SDMA)

SDMA allows multiple signals to share the same frequency band by physically separating them using spot beam antennas. This technique leverages the spatial diversity provided by the satellite’s antenna system, ensuring that signals do not interfere with each other. Here’s how SDMA works:

  • Spot Beam Antennas: The satellite uses multiple spot beams to cover different geographic areas. Each beam focuses on a specific region, providing high-gain, localized coverage.
  • Orthogonal Signals: Signals transmitted in different beams are inherently orthogonal because they are directed at different spatial regions. This spatial separation allows multiple users to occupy the same frequency band without causing interference.
  • Separated Receivers: The signals can be collected by physically separated receivers on the ground, ensuring that each receiver only picks up the signal intended for its respective area.

Advantages:

  • Increased Capacity: By reusing frequencies in different spatial areas, SDMA significantly increases the overall capacity of the satellite system.
  • Localized Coverage: Spot beams provide high-gain coverage to specific regions, enhancing signal strength and quality.

Disadvantages:

  • Complexity in Beam Management: Managing multiple spot beams requires sophisticated control systems and precise alignment.
  • Interference at Beam Edges: Overlapping areas between adjacent beams can lead to interference, necessitating careful beam pattern design.

Satellite-Switched TDMA (SS/TDMA)

A flexible implementation of SDMA is Satellite-Switched Time Division Multiple Access (SS/TDMA), which combines the spatial benefits of SDMA with the temporal advantages of TDMA. In SS/TDMA:

  • Microwave Switch Matrix: The satellite is equipped with a microwave switch matrix that dynamically connects different antenna beams.
  • Programmable Memory Control: The switching sequence is controlled by a programmable memory, allowing for rapid and flexible interconnections among beams.
  • TDMA Bursts: Earth stations communicate by transmitting TDMA bursts at precise timings. The switch matrix ensures these bursts are routed to the correct beams, enabling seamless communication across different regions.

Polarization Division Multiple Access (PDMA)

PDMA exploits the polarization property of electromagnetic waves to separate signals transmitted on the same frequency band. Here’s how PDMA works:

  • Orthogonal Polarizations: Antennas are designed to transmit signals with orthogonal polarizations (e.g., vertical and horizontal, or left-hand and right-hand circular polarizations).
  • Separation of Electromagnetic Fields: The orthogonally polarized signals do not interfere with each other because their electromagnetic fields are oriented in different directions. This separation allows multiple signals to share the same frequency band without mutual interference.
  • Polarized Antennas: Both the satellite and the ground stations use polarized antennas to ensure proper transmission and reception of the polarized signals.

Advantages:

  • Efficient Frequency Utilization: By using orthogonal polarizations, PDMA doubles the capacity within a given frequency band.
  • Reduced Interference: Polarization separation reduces interference between signals, improving overall communication quality.

Disadvantages:

  • Polarization Alignment: Maintaining accurate polarization alignment between the satellite and ground stations is critical and can be challenging.
  • Depolarization Effects: Atmospheric conditions can cause depolarization, potentially reducing the effectiveness of PDMA.

Space Division Multiple Access (SDMA) and Polarization Division Multiple Access (PDMA) are powerful techniques that enhance the capacity and flexibility of satellite communication systems. SDMA utilizes spatial separation through spot beam antennas, while PDMA exploits orthogonal polarizations to share frequency bands efficiently. When combined with other techniques like TDMA, these methods can significantly improve the performance and efficiency of satellite networks, making them well-suited for handling the increasing demands of modern communication systems.

Fixed and On-Demand Multiple Access in Satellite Communications

In satellite communications, efficient traffic routing requires each carrier transmitted by earth stations to access a specific radio-frequency channel. This access can be achieved through three fundamental modes: Frequency Division Multiple Access (FDMA), Time Division Multiple Access (TDMA), and Code Division Multiple Access (CDMA). Each carrier is assigned a portion of the satellite’s resource, which can be a frequency band, a time slot, or a fraction of the total power keyed to a code. These assignments can be fixed or on-demand.

Fixed Assignment

With fixed assignment, each earth station is allocated a fixed capacity, independent of the traffic demand from the terrestrial network it serves. This method has some notable characteristics:

  • Predictability: Each station knows in advance the capacity available to it, which simplifies network management and planning.
  • Limited Flexibility: Fixed assignments do not adapt to variations in traffic demand. If an earth station receives more traffic than its allocated capacity, it must refuse some calls, leading to a blocking situation. This occurs even if other stations have unused capacity.
  • Underutilization: Fixed assignment can lead to inefficient use of the satellite network resources, as excess capacity in one station cannot be utilized by another.

On-Demand Assignment

The multiple-access schemes discussed thus far would be termed fixed assignment for the case in which a user has access to the channel independent of his actual message traffic. By comparison, dynamic assignment schemes, sometimes called demand assignment multiple access (DAMA), give the user access to the channel only when he has a message to send. If the traffic from users tends to be burst-like or intermittent, then great efficiencies can be gained by using DAMA procedures to access the CR.

On-demand assignment dynamically allocates satellite network resources based on real-time demand. This approach offers several advantages:

  • Flexibility: Capacity can be transferred from stations with low demand to those with higher demand, optimizing resource utilization.
  • Scalability: On-demand assignment is particularly beneficial in networks with a large number of stations, each with variable and unpredictable traffic demands.

The implementation of on-demand assignment varies depending on the multiple access scheme:

  • On-Demand FDMA/CDMA: Capacity is allocated by assigning a specific frequency band or a code from a set of orthogonal codes to a transmitting station for the duration of the connection.
  • On-Demand TDMA: Offers the greatest flexibility by adjusting the length and position of bursts within the time frame. This requires coordination to change the burst time plan but only slightly increases earth station hardware complexity due to existing synchronization equipment. Capacity increments can be as small as a single communication channel, and assignments can be performed on a call-by-call basis.

Suitability of Fixed and On-Demand Assignment

  • Fixed Assignment: Best suited for networks with large volumes of traffic between a small number of high-capacity stations. It ensures stability and predictability in capacity allocation.
  • On-Demand Assignment: Ideal for networks with many low-capacity stations experiencing large variations in demand. This approach allows stations to occasionally access greater capacity than would be possible with a fixed assignment, improving overall resource utilization.

Handling Bursty Traffic

FDMA, TDMA, and CDMA are traditionally used for continuous traffic such as voice communication, which requires dedicated circuits. However, some data traffic types, such as those from computer networks or query/response systems in banks, are characterized by periods of inactivity followed by bursts of activity.

  • Inefficiency of Dedicated Circuits: Dedicated circuits for bursty traffic are inefficient because the channel remains idle during inactivity periods, leading to poor utilization.
  • Efficient Channel Utilization: A more efficient approach is to share a channel among several users using protocols matched to traffic characteristics. This ensures that the channel is utilized only when necessary, improving overall efficiency.

Fixed and on-demand multiple access schemes play critical roles in satellite communications, each with unique advantages and considerations. Fixed assignment offers predictability and simplicity, while on-demand assignment provides flexibility and better resource utilization. Understanding the traffic characteristics and requirements of the network is essential for choosing the appropriate access scheme, ensuring efficient and reliable communication.

Random Access in Satellite Communications

Random Access (RA) protocols are particularly suitable for networks with a large number of earth stations that need to transmit short, randomly generated messages with long idle periods between transmissions. The core principle of random access is to allow the transmission of messages almost without restriction in the form of short-duration packets, resulting in bursts of modulated carriers that occupy part or all of the repeater channel’s bandwidth. This approach employs time division and random transmission, accepting the possibility of collisions between carrier bursts at the satellite.

ALOHA

ALOHA is one of the simplest random access protocols, where nodes transmit packets to a single receiver immediately upon generation, regardless of the medium’s activity. Key characteristics of ALOHA include:

  • Immediate Transmission: Packets are transmitted as soon as they are generated.
  • Collision Detection: Collisions are detected at the receiver by checking the CRC field of the decoded packets. If a collision occurs, the packets involved are considered lost.
  • Retransmissions: Depending on the protocol settings, nodes may retransmit collided packets after a random delay. If retransmissions are disabled, collided packets are simply discarded.

Slotted ALOHA

Slotted ALOHA (SA) introduces time slots to reduce the probability of collisions:

  • Time Slots: A common clock dictates the start of each time slot, and nodes wait until the beginning of the next slot before transmitting a packet.
  • Reduced Vulnerability: By aligning transmissions to time slots, the vulnerable period for collisions is reduced from two packet durations to one. Only packets starting within the same time slot can collide.
  • Trade-Off: While this reduces the collision probability, it introduces a slight delay compared to ALOHA.

Considerations for ALOHA and Slotted ALOHA

Random access protocols are particularly attractive for scenarios with unpredictable and random traffic, such as satellite return links and ad-hoc networks. However, there are several important considerations:

  • Throughput Performance: Both ALOHA and Slotted ALOHA have limited throughput performance. Despite this, they can offer lower delay compared to demand assigned multiple access (DAMA) schemes, which require resource allocation requests that incur round trip time (RTT) delays, especially significant in geostationary orbit (GEO) satellite systems where RTT can exceed 500 ms.
  • Retransmissions and Reliability: For applications requiring full reliability, ALOHA and SA protocols can include retransmissions. However, this increases delay due to additional RTT in satellite communications.
  • Unpredictable Traffic: ALOHA and SA are well-suited for environments with random traffic patterns. Recent RA protocols have improved throughput and reception reliability, making them viable even with variable channel loads.

Emerging Applications and Recent Advances

With the rise of the Internet of Things (IoT) and machine-to-machine (M2M) communications, new requirements and challenges have emerged:

  • Sensor Networks and Metering Applications: In many IoT applications, data transmission is repetitive, so occasional packet loss is acceptable as long as a minimum success rate is maintained. This reduces the need for full reliability and retransmissions.
  • Enhanced RA Protocols: Recent advancements in RA protocols have significantly improved throughput and successful reception probabilities, even with high channel loads. These protocols are designed to efficiently manage the dynamic nature of channel usage, particularly beneficial for satellite communication systems where minimizing RTT delays is crucial.

Random access protocols like ALOHA and Slotted ALOHA offer simple and flexible solutions for satellite communications, especially in networks with unpredictable traffic patterns. While their throughput performance is limited, they provide lower delays compared to DAMA schemes and are suitable for applications with bursty traffic. Advances in RA protocols continue to enhance their efficiency and reliability, making them increasingly viable for modern satellite communication systems and IoT applications.

Emerging Multiple Access Techniques

As satellite communications evolve, new multiple access techniques are emerging to address the growing demand for bandwidth and connectivity.

Orthogonal Frequency Division Multiple Access (OFDMA)

Overview: OFDMA subdivides the frequency band into multiple orthogonal subcarriers, assigning subsets of these subcarriers to individual users. This technique is widely used in modern wireless communication systems.

Advantages:

  • High Spectral Efficiency: Better utilization of available spectrum by dividing it into narrow subcarriers.
  • Flexibility: Dynamic allocation of subcarriers based on user demand and channel conditions.
  • Reduced Interference: Orthogonality of subcarriers minimizes interference.

Disadvantages:

  • Complexity: More complex signal processing compared to traditional FDMA or TDMA.
  • Synchronization: Requires precise synchronization to maintain orthogonality.
  • PAPR Issues: High Peak-to-Average Power Ratio (PAPR) can complicate power amplifier design.

Design Considerations:

  • Subcarrier Allocation: Efficient algorithms for dynamic subcarrier allocation.
  • Synchronization: Mechanisms to ensure precise timing and frequency synchronization.
  • PAPR Management: Techniques to reduce PAPR and improve power efficiency.

Non-Orthogonal Multiple Access (NOMA)

Overview: NOMA allows multiple users to share the same frequency band by superimposing their signals at different power levels. The receiver uses successive interference cancellation to separate the signals.

Advantages:

  • Increased Capacity: Can accommodate more users within the same bandwidth compared to orthogonal schemes.
  • Flexibility: Supports dynamic allocation of power levels based on user requirements.
  • Improved Fairness: Enables more efficient use of resources by serving users with different channel conditions.

Disadvantages:

  • Complexity: Increased complexity in signal processing at the receiver.
  • Interference: Requires effective interference cancellation techniques.
  • Power Management: Needs precise power control to manage the superimposed signals.

Design Considerations:

  • Power Allocation: Efficient algorithms for dynamic power allocation among users.
  • Interference Cancellation: Robust techniques for successive interference cancellation at the receiver.
  • User Grouping: Strategies for grouping users based on their channel conditions and power levels.

MF-TDMA: Optimizing Satellite Network Access

Multi-Frequency Time Division Multiple Access (MF-TDMA) is a leading technology for efficiently managing bandwidth in two-way satellite communication networks. It combines the principles of Frequency Division Multiple Access (FDMA) and Time Division Multiple Access (TDMA), making it highly effective for dynamic bandwidth allocation and maximizing overall network efficiency. Here’s a closer look at MF-TDMA, its advantages, and its applications in satellite networks.

Overview of MF-TDMA

MF-TDMA integrates both frequency and time division techniques. The key characteristics of MF-TDMA include:

  • Frequency Division: The transponder’s frequency band is divided into several carriers.
  • Time Division: Each carrier operates using a narrow-band TDMA scheme, where multiple users share the same frequency channel by transmitting in different time slots.

Clock synchronization is critical in MF-TDMA systems to ensure precise timing of transmissions and prevent interference between users sharing the same frequency band.

Advantages of MF-TDMA

MF-TDMA offers several advantages that make it the preferred choice for satellite networks:

  1. Dynamic Bandwidth Allocation: The ability to dynamically share bandwidth resources among numerous transmitters enhances the efficiency of satellite communication networks.
  2. High Efficiency: By combining FDMA and TDMA, MF-TDMA maximizes the utilization of available bandwidth, improving overall network performance.
  3. Flexibility: MF-TDMA supports various network topologies, including star, fully meshed, and partially meshed configurations, providing flexibility in network design.
  4. Scalability: The technology can support tens of thousands of transmitters, making it suitable for large-scale networks.
  5. Service Quality: MF-TDMA ensures high-quality service by efficiently managing bandwidth and minimizing delays and interference.

Applications of MF-TDMA in Satellite Networks

MF-TDMA is particularly effective in scenarios requiring high bandwidth efficiency and dynamic allocation:

  • Broadband Internet Access: MF-TDMA is used to provide high-speed internet access via satellite, particularly in remote and underserved areas.
  • Enterprise Networks: Businesses with multiple locations can benefit from MF-TDMA’s ability to dynamically allocate bandwidth based on demand, ensuring reliable and efficient communication.
  • Military and Government Communications: MF-TDMA’s robust and efficient bandwidth management makes it suitable for secure and mission-critical communication networks.
  • Broadcasting Services: Satellite TV and radio services can utilize MF-TDMA to efficiently distribute content to a large audience.

Technical Considerations

Implementing MF-TDMA requires careful attention to several technical aspects:

  • Clock Synchronization: Precise clock synchronization is essential to prevent overlap and interference between users sharing the same frequency band.
  • Frequency Planning: Effective frequency planning ensures optimal use of the available spectrum and minimizes the risk of interference.
  • Network Topology: Choosing the appropriate network topology (star, meshed, or partially meshed) based on the specific needs and scale of the network.

MF-TDMA is a versatile and efficient multiple access technique that optimizes bandwidth utilization in satellite networks. By combining the strengths of FDMA and TDMA, it enables dynamic bandwidth allocation, high efficiency, and flexibility in network design. Whether for broadband internet, enterprise connectivity, military communications, or broadcasting, MF-TDMA stands out as a powerful solution for modern satellite communication challenges. As satellite technology continues to evolve, MF-TDMA will remain a critical component in the quest for optimized and high-quality satellite networks.

ST Engineering iDirect’s World-First MF-TDMA Demo on Telesat LEO Satellite

In October 2020, ST Engineering iDirect achieved a significant milestone by completing the first live demonstration of its Multi-Frequency Time Division Multiple Access (MF-TDMA) technology on Telesat’s Phase-1 Low Earth Orbit (LEO) satellite. This groundbreaking demonstration showcased the dynamic sharing of bandwidth among multiple terminals within a LEO constellation, extending the capacity and flexibility of Telesat’s multi-beam beam-hopping architecture. This innovation is poised to benefit a wide range of applications, including commercial, government, and defense markets for land, land-mobile, aeronautical, and maritime communication.

Key Achievements and Technical Details

  • Dynamic Bandwidth Sharing: The MF-TDMA technology enabled efficient bandwidth allocation across multiple terminals, improving capacity, performance, and affordability of broadband services over LEO satellites.
  • Clock Synchronization: Achieved short guard times comparable to GEO satellite links, crucial for maintaining capacity and spectral efficiency without compromising performance.
  • Real-world Application: Successfully conducted a video conference with seamless connectivity, low jitter, and low packet loss, demonstrating a high Quality of Experience (QoE) that surpassed typical GEO satellite network performance.

Bart Van Poucke, Vice President of Product Management at ST Engineering iDirect, emphasized the importance of this achievement in leveraging MF-TDMA efficiency and the low latency offered by LEO satellites. Erwin Hudson, Telesat’s Vice President of LEO, highlighted the significant advantages MF-TDMA brings to LEO networks, including increased flexibility and higher capacity for a greater number of end users.

Mx-DMA Multi-Resolution Coding (MRC)

ST Engineering iDirect also introduced a new return link technology, Mx-DMA MRC, which significantly improves the efficiency and scalability of satellite communication networks.

Features and Benefits

  • Unified Technology: Mx-DMA MRC combines the flexibility of TDMA with the efficiency of SCPC, enabling a wide range of use cases from high-demand applications like cruise ships to low-demand IoT devices.
  • Dynamic Adjustment: The technology adjusts frequency plan, symbol rate modulation, transmission length, code block size, and power in real-time based on demand, ensuring optimal performance.
  • Scalability and Efficiency: Mx-DMA MRC scales efficiently, supporting thousands of terminals logging on simultaneously with minimal guard times and synchronization overheads.

The Mx-DMA MRC technology builds on the award-winning Mx-DMA® HRC (High Resolution Coding), extending its benefits to large networks and various applications. It offers service providers the ability to cover diverse use cases within a single return link, maximizing statistical multiplexing and minimizing operational complexity.

Practical Applications

  • Diverse Use Cases: Suitable for applications ranging from large enterprise customers and cruise ships to SCADA and broadband access, sharing satellite capacity efficiently.
  • Cost Savings: High efficiency and real-time optimization lead to bandwidth savings, higher throughput, better network availability, and substantial terminal cost reductions.

ST Engineering iDirect’s MF-TDMA and Mx-DMA MRC technologies represent significant advancements in satellite communications. The successful demonstration on Telesat’s LEO satellite and the introduction of Mx-DMA MRC highlight the potential for improved capacity, performance, and flexibility in satellite networks. These technologies cater to a broad spectrum of applications, offering service providers efficient solutions that enhance user experience while minimizing costs and operational complexities

Optimizing Satellite Network Multiple Access

Designing an optimal multiple access scheme for a satellite network involves navigating a variety of solutions to accommodate different types of traffic and network requirements. The primary goal is to balance economic considerations with performance metrics such as satellite radiated power, RF spectrum utilization, connectivity, adaptability to traffic and network growth, handling of diverse traffic types, ground station complexity, and, in some cases, security.

The optimal MAT for a satellite network depends on various factors:

  • Traffic Type: Real-time voice calls benefit from TDMA, while bursty internet traffic might favor CDMA.
  • Number of Users: For a large user base, efficient bandwidth utilization of FDMA or OFDMA might be crucial.
  • Complexity and Cost: Simpler techniques like FDMA might be preferred for cost-sensitive applications.

Here’s an in-depth look at how to approach this optimization:

Economic Considerations

The choice of multiple access technique should be guided by economic considerations, including both the initial investment and ongoing operating costs, balanced against potential revenue. This involves analyzing:

  • Global Cost: Initial investment in ground stations and satellite infrastructure, as well as ongoing maintenance and operational costs.
  • Revenue Potential: Benefits in terms of increased traffic capacity, improved service quality, and expanded network coverage.

Traffic Types and Corresponding Access Techniques

Different types of traffic demand different multiple access schemes:

  1. Continuous or Quasi-Continuous Traffic: Such as telephone traffic, television transmission, and videoconferencing.
    • FDMA (Frequency Division Multiple Access): Suitable for large volumes of traffic per carrier and a small number of access points. Offers operational simplicity but may not be efficient for small traffic volumes.
    • TDMA (Time Division Multiple Access): Ideal for large numbers of access points with smaller traffic volumes per carrier. Requires more sophisticated and costly earth station equipment.
    • CDMA (Code Division Multiple Access): Beneficial for small stations with high interference susceptibility. Despite lower efficiency, it provides robustness against interference.
  2. Short Messages with Long Dead Times: Characterized by sporadic traffic with short messages.
    • Random Access (RA): Best suited for this type of traffic. ALOHA and its variants (Slotted ALOHA) are simple but suffer from low efficiency due to collisions.
    • Demand Assigned Multiple Access (DAMA): Provides higher efficiency by allocating resources based on demand, but can introduce delays due to the need for a handshake protocol.

Fixed vs. On-Demand Assignment

The choice between fixed and on-demand assignment of resources impacts the network’s flexibility and efficiency:

  • Fixed Assignment: Each earth station is allocated a fixed portion of the satellite resource, regardless of current demand. This can lead to inefficiencies, such as underutilization of capacity when demand is low and blocking when demand exceeds allocated capacity.
  • On-Demand Assignment: Resources are dynamically allocated based on current demand, improving overall utilization and accommodating variations in traffic. This approach is more complex and requires additional equipment for resource management but can significantly increase network efficiency and revenue.

Advanced Access Techniques

Modern satellite communications require advanced multiple access techniques to handle emerging applications and diverse traffic types:

  • Packet Access Schemes: Designed for bursty data traffic, these schemes maximize channel utilization for small data packets, reducing inefficiencies inherent in traditional DAMA for such traffic types.
  • RA Protocols for IoT and M2M: Traditional RA protocols like ALOHA and Slotted ALOHA are being supplemented by more sophisticated protocols to meet the stringent requirements of IoT and M2M communications, such as high throughput and low packet loss rates.

Practical Considerations for Specific Applications

The optimal multiple access scheme varies depending on the application:

  • Large, High-Capacity Earth Stations: For applications with few large earth stations handling heavy traffic, the focus should be on optimizing bandwidth and satellite power usage, allowing for more complex and efficient access schemes.
  • Mobile Terminals: For large numbers of low-cost mobile terminals, the access scheme should prioritize simplicity and robustness, enabling low-cost, reliable receivers while maintaining flexibility to handle numerous terminals and network expansion.

Technological Advancements and Optimization

Satellite network optimization is a dynamic field, constantly evolving with technological advancements. Key considerations include:

  • RF Link and Antenna Design: Optimizing the RF link involves selecting appropriate frequencies, designing efficient antennas, and choosing suitable satellite modems to ensure robust communication links.
  • IP Network Integration: Modern satellite networks often interface with IP-based networks, requiring optimization across both RF and wide area network (WAN) domains to ensure seamless connectivity and performance.

Optimizing a satellite network involves a complex interplay of economic, technical, and application-specific factors. Engineers must carefully evaluate multiple variables to design a system that maximizes overall performance and efficiency while meeting specific traffic requirements. This includes selecting the appropriate multiple access technique, balancing fixed and on-demand resource assignments, and integrating advanced protocols to handle emerging communication needs. Continuous advancements in technology and evolving application demands drive the ongoing optimization efforts, ensuring satellite networks remain competitive and capable of delivering high-quality, reliable services.

Conclusion

Selecting the appropriate multiple access technique for satellite communications involves balancing trade-offs between complexity, efficiency, scalability, and robustness. TDMA, FDMA, and CDMA each offer unique advantages and face specific challenges. Emerging techniques like OFDMA and NOMA promise enhanced spectral efficiency and capacity, addressing the growing demands of modern communication networks.

As satellite communication systems continue to evolve, leveraging these multiple access techniques effectively will be crucial in meeting the increasing demands for bandwidth, connectivity, and performance. Understanding the strengths and limitations of each technique, along with thoughtful design considerations, will enable the development of robust and efficient satellite communication systems.

















https://www.youtube.com/watch?v=P-lEjHw6F30



References and Resources also include:

https://www.idirect.net/news/st-engineering-idirect-achieves-worlds-first-live-mf-tdma-demo-on-telesat-leo-satellite/

About Rajesh Uppal

Check Also

Quantum Navigation: Revolutionizing Military Applications and Deep Space Environments

In the realm of modern warfare and exploration, traditional navigation systems face significant limitations, especially …

error: Content is protected !!
