The automotive industry is witnessing a transformative shift as technology accelerates the development of autonomous driving systems. Among the groundbreaking innovations contributing to this evolution are Coherent and Frequency Modulated Continuous Wave (FMCW) LiDAR systems. These advanced sensing technologies enhance the safety, reliability, and performance of self-driving vehicles, promising to revolutionize the future of transportation.

The Role of SLAM in Autonomous Driving

The dynamic and unpredictable nature of driving environments necessitates an immense amount of local computing power and sophisticated algorithms to ensure quick adaptation and timely decision-making in autonomous vehicles. To achieve fully informed decisions, reliable sensors that continuously feed data to the driving system are crucial.

A significant portion of the perception layer in autonomous driving systems is devoted to Simultaneous Localization and Mapping (SLAM). This involves constantly updating a map of an unknown environment in relation to the vehicle’s location. SLAM algorithms utilize inputs from various sensor types, predominantly imaging sensors, because, like human drivers, autonomous vehicles heavily rely on visual information. The primary imaging sensors considered for self-driving cars include cameras, RADAR, and LiDAR.

Understanding LiDAR Technology

LiDAR (Light Detection and Ranging) technology has become an indispensable component of autonomous driving systems, providing accurate and detailed information about the surrounding environment. By utilizing active sensing with infrared lasers, LiDAR generates high-definition, real-time 3D images, allowing vehicles to perceive their surroundings with remarkable precision. This capability effectively addresses the fundamental limitations associated with camera-based imaging and RADAR systems, making LiDAR a vital component for ensuring robust autonomy in self-driving cars.

Operating similarly to RADAR, LiDAR sends out light pulses towards targets and calculates distances based on the time it takes for these pulses to return. However, because LiDAR employs light pulses with wavelengths approximately 100,000 times smaller than the radio waves used by RADAR, it achieves significantly higher resolution and accuracy in distance measurements. Unlike cameras, which rely on ambient light and struggle in low visibility conditions, LiDAR performs effectively in various environments, providing consistent performance in both daylight and darkness.

Traditional pulsed LiDAR systems emit short bursts of light and measure the time it takes for the light to bounce back to the sensor. While this method is effective, it can encounter challenges related to accuracy and resolution, particularly in complex environments with multiple reflective surfaces. To overcome these limitations, coherent LiDAR employs coherent light sources, enhancing the system’s capability to measure not only distance but also the velocity of moving objects. By analyzing frequency changes in the returned light—an effect known as the Doppler effect—coherent LiDAR can deliver more detailed information about the surrounding environment, making it an invaluable tool for autonomous driving.

A specific type of coherent LiDAR, Frequency Modulated Continuous Wave (FMCW) LiDAR, emits continuous laser waves with varying frequency. This technique enables the system to measure distance and speed simultaneously, providing several advantages over traditional pulsed LiDAR. The continuous nature of FMCW signals allows for more accurate detection of moving objects, even in high-speed scenarios, which is crucial for the safety and efficiency of autonomous vehicles. As a result, FMCW LiDAR is poised to play a pivotal role in advancing the capabilities of self-driving technology, enhancing situational awareness, and improving overall road safety.

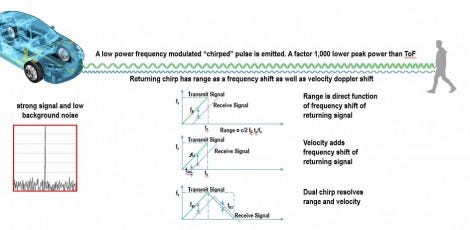

The low power transmit chirp (green) is reflected off an object. The frequency shift between the returning chirp (blue) is proportional to the distance and velocity of the object. An up and a down chirp are used to resolve for both values, distance and velocity.

FMCW LiDAR Technology and System Overview

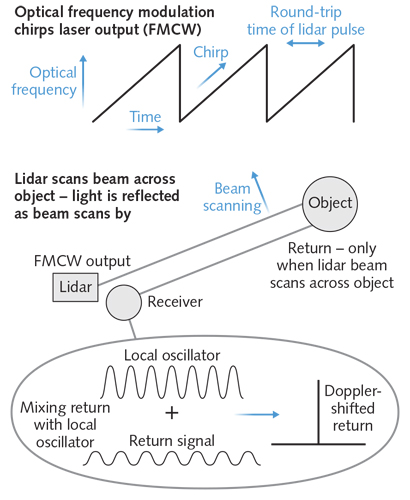

Frequency Modulated Continuous Wave (FMCW) LiDAR is a cutting-edge advancement in the realm of coherent LiDAR technology, offering enhanced capabilities for distance and speed measurement. Unlike traditional pulsed LiDAR systems, FMCW LiDAR employs a continuous-wave laser whose frequency is linearly modulated over time. This modulation generates a frequency difference between the transmitted and reflected signals, enabling the system to measure the time of flight (TOF) with remarkable precision.

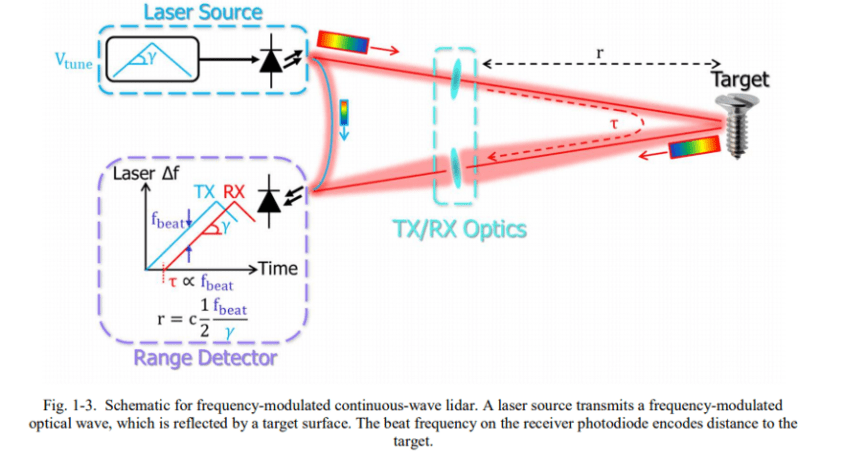

Chirped Frequency Modulated Continuous Wave (FMCW) LiDAR represents a sophisticated advancement in optical sensing technology. In this system, the phase of a light source—typically a single-mode laser—is modulated to directly alter the optical frequency of the emitted light. As the light travels through free space, it undergoes a phase shift that encodes distance information based on the time of flight. Upon reflection, the modified light is mixed with a non-delayed version of the original chirp at a photodiode, enabling the system to detect variations in phase with high precision. This mixing process is inherently straightforward and does not require complex design elements, aside from ensuring optimal performance of the photodetector. As a result, chirped FMCW LiDAR can deliver accurate distance measurements and velocity data, significantly enhancing its utility in applications such as autonomous driving and advanced sensing technologies.

Advantages of Coherent and FMCW LiDAR

One of the key advantages of FMCW LiDAR is its ability to perform simultaneous measurements of both distance and speed. By analyzing the frequency shift of the returning signal, the system can determine how far away an object is, as well as its velocity. This dual measurement capability streamlines data acquisition, allowing for real-time processing of dynamic environments. As a result, FMCW LiDAR systems can effectively track moving objects, such as pedestrians and vehicles, providing critical information for safe navigation in complex urban landscapes.

Additionally, the continuous nature of the FMCW signal allows for a more efficient use of available data bandwidth. This efficiency reduces the computational demands on the processing unit, enabling faster analysis and decision-making processes. Furthermore, FMCW LiDAR systems are known for their robustness in adverse weather conditions, maintaining accuracy and reliability even in challenging environments such as rain, fog, or snow.

Extended Range and Resolution: One of their standout features is their enhanced range and resolution, allowing them to achieve higher resolution and longer detection ranges compared to conventional LiDAR systems. Capable of detecting objects at distances exceeding 250 meters, essential for timely braking or evasive maneuvers. This capability is essential for autonomous vehicles navigating complex urban environments filled with various obstacles, ensuring that they can detect and respond to their surroundings accurately and efficiently.

Most Time of Flight (ToF) LiDAR systems typically operate at wavelengths of 850 and 905 nm, placing them close to the visible light spectrum. This proximity imposes restrictions on the maximum laser power, often limiting their effective range to less than 100 meters. However, for autonomous driving, it is crucial to detect obstacles at distances of 250 meters or more to allow for timely braking or evasive maneuvers. The ability to achieve greater detection ranges is essential, as it provides drivers or autonomous systems with the extra time needed to react to unexpected obstacles. Even a fraction of a second can significantly impact safety and comfort, highlighting the importance of enhancing LiDAR technology to extend its operational range and responsiveness.

FMCW LIDAR operates in the wavelength range of 1550 nm, thus the laser meets the required high standards of eye safety. In addition, it can provide accurate measurement results even under limited visibility conditions, for example in fog, rain or snowfall.

Another critical advantage of coherent and FMCW LiDAR systems is their improved object detection capabilities. By measuring both distance and velocity, these systems can effectively identify and track moving objects, such as pedestrians, cyclists, and other vehicles. This enhanced ability to recognize dynamic elements in real-time is crucial for enabling safer navigation and minimizing the risk of accidents in busy urban settings.

Robustness Against Adverse Conditions: Robust performance in adverse conditions further distinguishes coherent and FMCW LiDAR systems. Unlike traditional LiDAR, which may struggle in challenging weather conditions such as rain, fog, or snow, these systems maintain their accuracy and reliability. This resilience makes them more suitable for real-world applications, where unpredictable weather can often impact sensor performance and overall safety.

Moreover, the continuous wave nature of FMCW LiDAR significantly reduces interference from other LiDAR systems, a common concern in crowded urban environments where multiple autonomous vehicles might be operating simultaneously. This characteristic enhances the reliability of data collected by each vehicle, facilitating smoother and safer interactions in densely populated areas.

Cost-Effectiveness and Scalability:

Despite its advantages, traditional commercial LiDAR systems that employ mechanical beam scanners and intensity-based detection methods come with high price tags, limiting their application in mass-produced consumer products. However, integrated coherent LiDAR combined with optical phased array-based solid-state beam steering has the potential to drastically reduce the cost of LiDAR modules, making them more accessible for widespread use in autonomous vehicles.

With the use of highly integrated Photonic Integrated Circuits (PICs), FMCW LiDAR modules can be produced at lower costs. As technology continues to advance, the cost-effectiveness of implementing coherent and FMCW LiDAR systems is expected to improve. With enhanced manufacturing processes and economies of scale, these systems are likely to become more affordable for consumer vehicles. This trend will facilitate broader adoption of autonomous driving technology, making it more accessible and practical for everyday use, and ultimately contributing to safer and more efficient transportation systems.

Overall, FMCW LiDAR technology significantly enhances the capabilities of autonomous vehicles, contributing to improved safety, reliability, and efficiency in real-world applications. As the technology matures and manufacturing costs decrease, we can expect FMCW LiDAR to become an integral component in the development of next-generation autonomous driving systems.

Implications for Autonomous Driving

The integration of coherent and FMCW LiDAR technologies is a significant step toward achieving full autonomy in vehicles. These systems enhance the sensory capabilities of autonomous vehicles, allowing them to perceive and interpret their surroundings with greater accuracy and reliability.

With improved object detection and situational awareness, autonomous vehicles equipped with these advanced LiDAR systems can respond more effectively to dynamic environments. This capability not only enhances the safety of the vehicle occupants but also contributes to the overall safety of pedestrians and other road users.

Furthermore, as autonomous vehicles become more prevalent, the data collected by coherent and FMCW LiDAR systems can be utilized to improve machine learning algorithms, leading to more sophisticated decision-making processes. This continuous feedback loop will facilitate the ongoing advancement of autonomous driving technology.

LiDAR: A Key Technology for Smart Cities

Mobility analysts, urban planners and AI companies bill widespread lidar as a building block for future urban societies, where autonomous vehicles, smart homes and infrastructure will work together in harmony to create “smart” cities. The potential for autonomous driving extends beyond individual convenience; it could revolutionize the entire automotive supply chain and pave the way for new players in the industry. For instance, Intel’s acquisition of Mobileye for $15.3 billion in 2017 has positioned the company as a frontrunner in the autonomous driving space.

Military Applications

FMCW LiDAR technology has transformative military applications due to its high-resolution and high-accuracy data capabilities, which enhance battlefield visualization, mission planning, and force protection. By providing detailed three-dimensional mapping of terrain and environments, FMCW LiDAR allows military strategists to analyze and understand complex landscapes, identify potential threats, and plan tactical operations more effectively. Its ability to measure both distance and velocity in real time facilitates the accurate tracking of moving targets, improving situational awareness for personnel and assets in the field. Furthermore, the robustness of FMCW LiDAR in adverse weather conditions ensures reliable data collection, enabling military forces to maintain operational effectiveness even in challenging environments, thereby enhancing overall mission success and force safety.

Challenges and Competing Technologies

While FMCW LiDAR presents substantial advantages, some companies, such as AEye, argue that high shot-rate, agile-scanning ToF systems may better serve the needs of autonomous vehicles regarding cost, range, performance, and point cloud quality. One key argument against FMCW LiDAR is its inability to measure lateral velocity in a single shot, which can limit its effectiveness compared to ToF systems.

FMCW LIDAR Innovations

Scantinel FMCW Sensor

The Scantinel FMCW Sensor leverages proprietary linear chip technology to simultaneously measure both distance and speed at any measurement point. Its coherent measurement process allows the sensor to filter out any returning light that does not match the originally emitted pulses, enhancing data accuracy. The sensor processes incoming data more quickly than traditional Time of Flight (ToF) systems, eliminating the need for computationally intensive estimations of object velocity. A standout feature of Scantinel’s technology is the integration of all components onto a single Photonic Integrated Circuit (PIC), significantly reducing costs and improving the robustness of the system. By utilizing chip-integrated waveguides at 1550 nm—already prevalent in telecommunications—Scantinel’s design avoids the reliance on moving parts, as seen in MEMS-based LiDAR, further enhancing reliability. The company has successfully demonstrated its FMCW LiDAR in customer applications and is engaging with leading automotive and system suppliers.

NeoPhotonics FMCW Laser and Semiconductor Optical Amplifier

NeoPhotonics Corporation has introduced a tunable high-power FMCW laser module and a high-power semiconductor optical amplifier (SOA) chip, designed to enhance long-range automotive LiDAR and industrial sensing applications. The tunable FMCW laser operates in the C-band, delivering over 21 dBm (126 mW) of fiber-coupled power with a narrow linewidth, while the SOA chip provides over 23 dBm optical output power. Operating in the 1550 nm wavelength band, these components are considered “eye-safe,” which is crucial for automotive applications. Their high output power significantly improves the sensitivity and range of LiDAR systems, enabling detection beyond 200 meters, thereby enhancing safety. The tunability of the FMCW laser also allows for adjustable operating wavelengths, increasing immunity to external light interference. NeoPhotonics’ approach utilizes photonic integrated circuits (PICs) for coherent detection, which measures both phase and amplitude of reflected light, thereby enhancing detection capabilities compared to traditional intensity-based systems. By applying their advanced photonic integration technology developed for communications, NeoPhotonics aims to provide significant benefits to the emerging LiDAR and autonomous vehicle markets.

Stellantis Ventures

Stellantis Ventures has made a significant investment in SteerLight, a pioneer in next-generation LiDAR technology that promises to revolutionize advanced driver assistance systems (ADAS). By leveraging innovative silicon photonics technology, SteerLight has developed a compact and cost-effective LiDAR solution that provides exceptional sensing precision and resolution. Central to this advancement is the use of Frequency Modulated Continuous Wave (FMCW) LiDAR technology, which allows for accurate depth and velocity data collection while minimizing interference from the surrounding environment. With its robust, microchip-based design utilizing FMCW capabilities, SteerLight’s LiDAR offers enhanced accuracy and reliability, even in challenging environments. This innovation aligns perfectly with Stellantis’ commitment to clean, safe, and affordable mobility solutions.

Conclusion

As the race toward fully autonomous vehicles accelerates, coherent and FMCW LiDAR technologies emerge as pivotal players in the landscape of self-driving technology. Their ability to provide high-resolution, reliable data in real-time equips autonomous systems with the necessary tools to navigate complex environments safely. As innovations continue to unfold, these technologies will undoubtedly play a critical role in shaping the future of transportation and smart urban ecosystems.
