Why Conventional Radars Fall Short
Traditional microwave radars operate in straight lines, limiting their detection range to what is known as the radio horizon—just slightly beyond the optical horizon. This poses a significant challenge for early warning systems, especially when it comes to detecting threats that emerge beyond line-of-sight, such as long-range aircraft, missiles, or naval vessels. Over-The-Horizon (OTH) radars overcome this barrier by exploiting the high-frequency (HF) band, typically in the range of 3 to 30 MHz, and the unique ways these waves interact with the Earth’s atmosphere. As a result, OTH systems are capable of tracking targets thousands of kilometers away, well beyond the capabilities of conventional radar.
The Science Behind OTH Radar: Skywave and Surface Wave
There are two primary modes of operation in OTH radar technology: skywave and surface wave propagation. Skywave OTH radars utilize the ionosphere—located roughly 60 to 1,000 kilometers above Earth’s surface—to refract HF signals back toward the ground. This phenomenon allows signals to “bounce” between the Earth and ionosphere, extending their reach over thousands of kilometers. These systems are especially effective for tracking aircraft and maritime vessels, with multi-hop propagation capable of detecting events like ballistic missile launches from distances exceeding 6,000 kilometers.

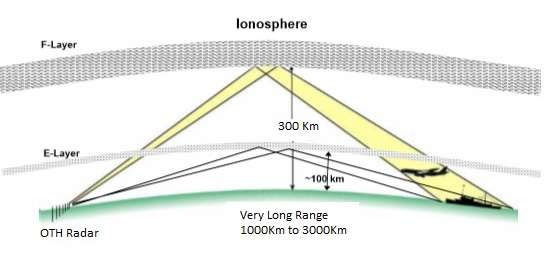

Skywave Over-the-Horizon Radar (OTHR): Extending Vision Beyond the Horizon
Skywave OTH radar systems represent a remarkable feat of engineering, enabling long-range detection of airborne and maritime targets far beyond the line of sight. These systems work by transmitting high-frequency (HF) signals into the upper atmosphere, specifically the ionosphere, located approximately 60 to 1,000 kilometers above Earth’s surface. The ionosphere refracts or “bounces” these signals back down to the Earth’s surface, where they illuminate distant objects. Reflected signals from these targets then return to the radar’s receiving station, completing the circuit of detection. This method allows OTHRs to achieve ranges between 500 and 4,000 kilometers in a single-hop configuration, and up to 6,000 kilometers for events such as ballistic missile launches via multi-hop signal propagation.
What distinguishes skywave OTHR from conventional radar systems is its capability to detect moving targets using Doppler shift analysis. By measuring the frequency change of the returning signal caused by a target’s motion, the system can isolate aircraft, ships, or even fast-moving missile launches from background noise and environmental clutter. Despite this strength, the system trades spatial resolution for range.
They can track targets in two dimensions—latitude and longitude—as well as derive speed and heading information, They can perform simultaneous tracking of separate targets. Such radars offer extremely long detection ranges (from 700 to 4000 km) but also very low resolution (from a few hundred meters to as much as 20 kilometers), depending on signal conditions and target characteristics.
The architecture of skywave OTH systems is formidable. They typically require extensive transmitter and receiver arrays that may span several kilometers in width. These arrays are often situated hundreds of kilometers apart in bistatic configurations to optimize signal reflection and reception. The coverage arc—the area the radar can effectively monitor—is influenced by the geographical orientation of these antenna arrays and the ever-changing state of the ionosphere, which is sensitive to solar activity, time of day, and atmospheric disturbances.
To manage and optimize such vast detection zones, skywave OTHRs employ “tile-based” scanning, a technique that focuses radar energy on specific geographic tiles rather than sweeping the entire field continuously. This approach enhances detection efficiency and allows operators to prioritize surveillance over high-risk or strategically sensitive areas. Under certain atmospheric conditions, only specific radio frequencies will get reflected back towards the ground. The “correct” frequency to use depends on the current conditions of the atmosphere. So systems using ionospheric reflection need real-time monitoring of the reception of backscattered signals to continuously adjust the frequency of the transmitted signal.
Despite their limitations in resolution and susceptibility to ionospheric variability, skywave OTHRs remain an indispensable part of modern long-range early warning and surveillance networks—especially for detecting stealth aircraft and hypersonic weapons traveling far beyond conventional radar coverage.
In contrast, high-frequency surface wave radars (HFSWRs) rely on vertically polarized HF signals that couple with the ocean’s surface and travel along the curvature of the Earth as Norton surface waves.
High Frequency Surface Wave Radar (HFSWR): Maritime Surveillance Beyond Line of Sight
High Frequency Surface Wave Radar (HFSWR) is a specialized class of over-the-horizon radar designed primarily for coastal surveillance. Unlike skywave systems that bounce signals off the ionosphere, HFSWR operates at high frequencies (typically within the HF band: 3–30 MHz) and exploits the conductive nature of seawater to guide electromagnetic waves along the Earth’s curved surface. This method, known as Norton surface wave propagation, allows radar energy to diffract over the ocean beyond the optical horizon, enabling the detection of ships and low-flying aircraft up to approximately 300 kilometers offshore.
The effectiveness of HFSWR relies heavily on the unique interaction between vertically polarized radar signals and the saline ocean surface, which acts as a low-loss waveguide. Coastal installations are essential, as the proximity to saltwater enables the electromagnetic energy to efficiently couple into and travel along the sea surface. This capability makes HFSWR systems particularly valuable for maritime domain awareness, fisheries protection, search-and-rescue operations, and national security, especially in regions where satellite coverage or aerial patrols may be limited.
Despite its utility, HFSWR technology presents several engineering trade-offs. The quality and accuracy of detections depend on a delicate balance between multiple factors, including propagation losses over long distances, environmental noise (such as wave and wind clutter), and signal degradation due to man-made electromagnetic interference. Additionally, target characteristics like radar cross-section (RCS) significantly influence detection reliability, especially for small or stealthy vessels.
One of the key limitations of HFSWR systems lies in their spatial resolution. Due to bandwidth constraints and the large wavelengths involved, target localization tends to have considerable error margins—ranging from ±1 to 2 kilometers in range and around ±1 degree in azimuth. These limitations stem from physical constraints in antenna size and signal processing capacity. Nevertheless, advances in digital signal processing and adaptive filtering techniques are steadily improving the fidelity and operational utility of these systems, making HFSWR a vital layer in modern coastal and maritime surveillance architectures.
Strategic and Military Applications of OTH Radar
Over-the-Horizon Radars (OTHR) and High-Frequency Surface Wave Radars (HFSWR) have emerged as critical components of modern air defense infrastructures, particularly in nations focused on long-range early warning and anti-stealth capabilities.
Stealth aircraft rely heavily on shaping and radar-absorbent materials (RAM) to deflect or absorb incoming radar energy, minimizing the radar cross-section (RCS) detectable by conventional systems. However, these methods are most effective against radar operating in higher frequency bands like X-band and Ku-band, which are commonly used in fire-control and tracking radars. At lower frequencies, such as those employed by OTH and VHF radars, stealth becomes significantly less effective. Longer wavelengths are not as easily absorbed or deflected, and when they are comparable to the size of the aircraft, resonance effects can dramatically increase the RCS.
This resonance effect causes large oscillations in the radar return due to interactions between directly reflected signals and creeping surface waves around the aircraft body. As a result, even stealth platforms designed to evade conventional radar can become detectable under the right HF or VHF radar conditions. Consequently, aircraft like the F-35 and B-2, which are engineered for low observability, become detectable at long range using HF-band systems. By leveraging these physics, countries integrating OTHR and HFSWR into layered defense architectures are enhancing their ability to detect, track, and classify advanced aerial threats long before they enter contested airspace. This not only strengthens situational awareness but also contributes significantly to strategic deterrence.
Countries such as China, Australia, Iran, Russia, and the United States have incorporated these technologies to extend surveillance coverage far beyond the line of sight. The ability of these systems to detect and track stealth aircraft—such as the B-2 Spirit, F-35 Lightning II, and F-22 Raptor—at distances of hundreds to thousands of kilometers has made them indispensable in the age of low-observable aviation threats.
Several leading OTH radar systems illustrate the global deployment of this technology. Australia’s Jindalee Operational Radar Network (JORN), the U.S.-based Raytheon’s ROTHR, France’s NOSTRA-DAMUS developed by ONERA, and Russia’s powerful STEEL YARD (29B6 Konteyner) operated by NIIDAR all function within the high-frequency band (5–30 MHz). Among them, Russia’s STEEL YARD stands out for its sheer power—transmitting at 1,500 kilowatts—and its ability to monitor massive airspaces, even tracking ballistic and hypersonic threats. These radars, thanks to their low-frequency operational bands, are well-suited for defeating traditional stealth technologies.
Beyond anti-stealth detection, OTH radars play crucial roles in early warning networks, monitoring ballistic or hypersonic missile launches, coastal surveillance, and search and rescue operations. These systems are increasingly integrated into the national defense strategies of countries like Australia, China, Russia, Iran, and the United States.
Global OTH Radar Deployments and Capabilities
Russia’s Expanding “Konteyner” Network
Russia’s “Konteyner” radar system represents one of the most advanced OTH radar deployments in the world. First operational in 2019, especially in the Arctic, this system is tailored to detect both aircraft and hypersonic missiles. The upgraded 29B6 version features a 240-degree coverage arc and can monitor over 5,000 airborne objects simultaneously across a range of 2,000 to 3,000 kilometers.
In December 2019, Russia activated its first operational 29B6 Konteiner radar in Mordovia, capable of monitoring vast regions across Western Europe and the Middle East. This bistatic system consists of a transmitter and receiver separated by approximately 300 kilometers. The transmitter includes 36 masts, while the massive 144-mast receiver spans over 1.3 kilometers. Operating in the HF band, the system reflects radio waves off the ionosphere to detect aerial objects thousands of kilometers away—anywhere from 2,000 to 6,000 km, depending on atmospheric conditions and the target’s radar cross-section.
The newer generation of the Konteiner radar, significantly upgraded since its 2013 trials, now boasts a 240-degree scanning arc (compared to the previous 180 degrees) and the ability to simultaneously track over 5,000 air targets. Its improved computing systems and refined Doppler processing algorithms allow it to detect smaller, faster, and more evasive targets, including the ionization wakes generated by hypersonic glide vehicles and short- to intermediate-range missile warheads flying at high altitudes. Russia asserts that these advanced systems can even detect a small aircraft on a runway or a warhead mid-flight, well before it enters Russian airspace. The system’s ability to detect ionization trails from hypersonic vehicles marks a significant leap in long-range early warning capabilities.
This radar modernization effort is part of a broader Arctic and national defense strategy. The Ministry of Defense has announced plans to install additional Konteiner stations in the Arctic, Kaliningrad, the Russian Far East, and Siberia—regions critical to strategic missile defense. With a proposed network of 10–12 such stations, Russia aims for near-total coverage of its external airspace. These systems are designed to work in tandem with the Voronezh radar network, which provides traditional line-of-sight early warning coverage, and Russia’s space-based surveillance systems. Importantly, Russian engineers have had to overcome technical challenges, such as ionospheric interference caused by solar radiation, by developing sophisticated algorithms capable of filtering clutter and precisely identifying Doppler shifts to determine a target’s speed and trajectory.
In the post-Cold War era, the resurgence of hypersonic threats and treaty uncertainty has once again made OTH radar a central pillar of Russia’s national security strategy, marking a return to ground-based long-range radar as an essential complement to orbital assets.
China’s Expanding OTH Radar Capabilities: From Coastal Surveillance to Strategic Targeting
China has developed multiple OTH radar systems to support its growing maritime and aerial domain awareness. Land-based OTH radars in provinces like Hubei and Hainan monitor vast stretches of the Western Pacific and track U.S. naval movements. On the Spratly Islands, China has deployed radar systems engineered for stealth detection, providing persistent surveillance over disputed waters. Additionally, China has developed ship-based OTH radar systems under the leadership of Liu Yongtan, enabling mobile radar coverage across vast oceanic areas—reportedly large enough to monitor zones the size of India.
China has steadily developed its Over-the-Horizon (OTH) radar technology since the late 1960s, with early OTH-B (backscatter) radar systems operating in the upper HF band (12–28 MHz). These bistatic systems, which utilize separate transmitter and receiver arrays, allow the Chinese military to monitor vast regions well beyond the line of sight, especially across the Western Pacific. One of the earliest installations is located in the Hubei-Henan-Anhui triangle, and since the 1980s, additional long-range OTH radars have been deployed, including on Hainan Island to monitor U.S. carrier groups in the South China Sea. These radars utilize Frequency Modulated Continuous Wave (FMCW) techniques for Doppler processing, enabling the detection of moving targets and suppression of static clutter.
Chinese OTH radar development is aimed squarely at enhancing maritime domain awareness and supporting its growing anti-access/area-denial (A2/AD) strategy. In particular, China’s radar infrastructure supports the targeting chain for its Anti-Ship Ballistic Missile (ASBM) system, such as the DF-21D and DF-26. These land-based ballistic missiles, equipped with maneuverable warheads, are guided using a combination of OTH radar and the Yaogan constellation of military satellites—including electronic intelligence (ELINT) platforms that track radio and radar emissions from U.S. carrier groups. By integrating OTH radar with satellites, China gains the flexibility to strike carriers at ranges exceeding 2,000 km—even in adverse weather conditions that obscure optical satellite imagery.
China has also pursued innovations in mobility and deployment flexibility. A notable advancement is its new ship-based OTH radar system, reportedly developed under the leadership of Liu Yongtan from the Harbin Institute of Technology. This compact radar, now deployed aboard PLA Navy vessels, allows China’s naval forces to maintain constant surveillance over areas as large as India, covering strategic regions like the South China Sea, Indian Ocean, and Pacific Ocean. These floating radar platforms vastly extend China’s maritime sensing range and contribute to real-time tactical awareness.
Moreover, satellite imagery and expert analyses suggest that China is installing advanced anti-stealth radar systems on several of its artificial islands in the Spratly archipelago, including Cuarteron, Gaven, Hughes, and Johnson South reefs. According to defense analysts, these radar towers—resembling Australia’s Jindalee OTHR network—could detect stealth aircraft within a 3,000-kilometer radius. This capability is particularly critical in contested regions like the South China Sea, where China aims to counter potential incursions by U.S. or allied stealth platforms such as the B-2 Spirit, F-22, or F-35.
In parallel, China has reportedly deployed OTH radar systems in Inner Mongolia, aimed at monitoring military activity in South Korea and Japan, particularly in response to the U.S. deployment of THAAD (Terminal High Altitude Area Defense) systems. Overall, China’s robust investment in OTH radar technology—both land-based and shipborne—demonstrates its commitment to expanding its surveillance envelope and denyin
Australia’s Jindalee Operational Radar Network (JORN): Securing the Continent from Afar
Australia’s Jindalee Operational Radar Network (JORN) is among the most comprehensive OTH systems globally, monitoring air and sea activity up to 4,000 kilometers away. Covering an expansive area of 37,000 square kilometers, JORN integrates transmitter facilities in Longreach, Laverton, and Alice Springs, with centralized control at RAAF Base Edinburgh. Currently undergoing a major Phase 6 upgrade, the A$1.2 billion project aims to incorporate open architectures, improved target discrimination, and enhanced scanning speeds. A key innovation is the use of a cryogenically cooled “sapphire clock,” which dramatically reduces signal noise and increases detection sensitivity.
Australia’s Jindalee Operational Radar Network (JORN) represents one of the most sophisticated over-the-horizon radar (OTHR) systems in the world. Designed to monitor air and sea movements across a 37,000 km² expanse, JORN can detect targets at ranges between 1,000 and 3,000 kilometers from the radar site—extending up to 4,000 km under optimal conditions. JORN plays a crucial role in national defense, providing early warning coverage across Australia’s vast northern approaches, including Java, Papua New Guinea, Irian Jaya, and even as far as Singapore and the South China Sea. Beyond defense, it supports border patrol, disaster relief, and search and rescue operations.
The network comprises three remote radar installations located at Longreach (Queensland), Laverton (Western Australia), and Alice Springs (Northern Territory), all coordinated from the JORN Coordination Centre (JCC) at RAAF Base Edinburgh in South Australia. Each site is responsible for a defined arc of surveillance—with Longreach and Alice Springs covering 90 degrees each, and Laverton covering a wider 180-degree arc. JORN operates selectively in peacetime to optimize resources but can function continuously during contingencies. Data collected from these radar stations is analyzed by No. 1 Radar Surveillance Unit RAAF (1RSU), then disseminated to military and intelligence agencies.
JORN utilizes high-frequency radar technology that reflects signals off the ionosphere, enabling it to track aircraft and maritime vessels far beyond the line of sight. However, this method presents unique challenges, including signal loss due to Earth’s clutter and the difficulty in detecting smaller radar cross-section targets. As such, JORN is optimized to track aircraft the size of a BAe Hawk-127 and maritime vessels the size of an Armidale-class patrol boat or larger. Despite these limitations, JORN has demonstrated impressive capabilities—such as detecting Chinese missile tests over 5,500 kilometers away during its prototype phase.
To maintain its technological edge, JORN is undergoing a $1.2 billion Phase 6 upgrade led by BAE Systems Australia. This upgrade aims to modernize the system’s architecture, improve scan rates, enhance detection sensitivity, and extend operational life beyond 2042. A significant innovation in this effort is the integration of the Cryogenic Sapphire Oscillator, also known as the Sapphire Clock—a hyper-precise timing system developed by the Institute for Photonics and Advanced Sensing. Ticking 10 billion times per second, the sapphire clock produces signals 1,000 times purer than those generated by commercial alternatives. This enhanced signal clarity is crucial for detecting smaller and more distant threats.
In conjunction with the Sapphire Clock, additional advancements include ultra-low noise synthesis and signal dissemination technologies that ensure the integrity of radar signals across the entire JORN network. These improvements mark a revolutionary leap in radar performance, enabling Australia to better observe, track, and respond to evolving threats in its surrounding airspace and maritime domains. By combining advanced physics, national security foresight, and indigenous innovation, JORN continues to serve as a vital pillar of Australia’s defense infrastructure well into the 21st century.
The integration of QuantX Labs’ Cryoclock into JORN represents a revolutionary leap in over-the-horizon radar capability, enabling the detection of previously undetectable threats. QuantX Labs’ Cryoclock is an ultra-precise cryogenic sapphire oscillator that delivers the world’s most stable and pure radio frequency signal. Operating at cryogenic temperatures, it dramatically reduces signal phase noise and frequency drift, making it ideal for high-performance radar and quantum systems. Its precision enables enhanced target detection, especially at long ranges and low radar cross-sections, positioning it as a critical component for advanced defense and space applications. By delivering ultra-stable, ultra-pure signals, the Cryoclock enhances JORN’s ability to distinguish between legitimate targets and environmental noise, particularly in contested or cluttered electromagnetic environments. This dramatically boosts Australia’s situational awareness and response time across its northern approaches.
India, Canada, and Iran: Expanding the Global OTH Radar Landscape
India has been steadily enhancing its surveillance infrastructure, and the development of Over-the-Horizon Radar (OTHR) systems has emerged as a priority in this strategic effort. Though official details remain classified, multiple defense analysts suggest that India has been exploring indigenous OTH radar capabilities through the Defence Research and Development Organisation (DRDO). Given India’s extensive maritime boundaries and growing concerns over Chinese naval activity in the Indian Ocean Region (IOR), an indigenous OTH radar would significantly strengthen India’s early warning and maritime domain awareness capabilities. A robust OTHR system would provide India with the ability to monitor deep-sea activity and detect hostile air and sea movements well beyond its coastal borders—critical in scenarios involving carrier strike groups or long-range missile launches. Collaborations with friendly nations, such as the U.S., Australia, and Israel, could further accelerate these ambitions.
Canada, recognizing the increasing strategic value of the Arctic, has embarked on a feasibility study to deploy sky-wave OTH radar systems in its polar region. In collaboration with Raytheon Canada Limited, the Canadian government awarded contracts totaling $30 million to design and install two OTH radar stations specifically to test the viability of HF radar technology under the disruptive conditions of the Aurora Borealis. These experimental systems aim to assess how polar ionospheric phenomena affect radar performance and target tracking across vast Arctic expanses. With the Northwest Passage becoming more navigable due to melting sea ice, Canada’s move to monitor Arctic traffic aligns with both defense preparedness and sovereignty assertion. The technology mirrors Raytheon’s successful U.S.-based ROTHR system, which has played a critical role in monitoring large areas beyond the continental United States.
Iran has also joined the OTH radar arena with its Ghadir system, showcasing a distinctly different approach to radar waveform modulation. Unlike typical OTHRs that use Frequency Modulated Continuous Wave (FMCW), the Ghadir radar uses a shaped pulsed signal that complicates spectral interpretation and allows for variable bandwidth depending on received power. Officially, Ghadir has a maximum range of 1,100 km and can scan in 360 degrees, offering 3D detection with a ceiling of 300 km. More ambitiously, Iranian military leaders have announced plans to unveil upgraded systems with a 3,000 km range to bolster the capabilities of the Khatam al-Anbiya Air Defense Base. Such systems would be able to detect and track aircraft flying far beyond Iran’s borders, aligning with Tehran’s broader air defense modernization strategy.
These developments underscore a global recognition of OTH radar as a force multiplier in early warning systems and strategic surveillance. Whether it’s defending northern frontiers in the Arctic, patrolling contested maritime zones in the Indian Ocean, or expanding airspace awareness across the Middle East, nations are increasingly investing in long-range radar networks to monitor threats far beyond the line of sight. As high-frequency technologies evolve, especially in clutter filtering and signal stability, OTH radars are poised to become indispensable assets in the 21st-century battlespace.
| Country | Radar System | Range (km) | Key Features |
|---|---|---|---|
| Australia | Jindalee Operational Radar Network (JORN) | 1,000–4,000 | Wide-area coverage, cryogenic sapphire oscillator, maritime and air threat monitoring, supports ADF operations. |
| Russia | Konteiner (29B6) | 2,000–6,000 | Bistatic array, anti-stealth, hypersonic missile detection, 240° arc coverage, over 5,000 targets tracked. |
| China | Various OTH-B & Ship-Based Systems | Up to 3,000+ | Integrated with ASBM systems, ship-based compact radar, anti-stealth capability, Spratly Islands installations. |
| India | Indigenous OTHR (Classified/Under Development) | Unknown | Likely developed by DRDO for strategic surveillance over Indian Ocean Region and Chinese front; may use HF-band and mobile configurations. |
| USA | ROTHR (Relocatable Over-the-Horizon Radar) | Up to 3,000 | Used for air/maritime surveillance, drug interdiction, bistatic configuration, real-time data to defense command. |
| Canada | Experimental Arctic OTHR (Raytheon Canada) | Testing Phase | Two radar sites planned for Arctic trials, testing impact of Aurora Borealis on HF skywave radar. |
| Iran | Ghadir | 1,100 (Planned 3,000) | 360° 3D radar, unique shaped pulse modulation, high ceiling (300 km), expanded plans for strategic early warning. |
| France | NOSTRA-DAMUS | Unknown | HF-band research radar developed by ONERA for advanced early warning and surveillance. |
Technological Challenges and Innovation Pathways
Despite their strategic value, OTH radar systems face several technical hurdles. One major challenge is their reliance on ionospheric conditions, which vary with solar activity and time of day. Effective operation requires adaptive frequency management, often within the 5 to 30 MHz range. In high-latitude regions, auroral interference adds further complexity, prompting nations like Canada and Russia to conduct specialized Arctic trials.
Advanced digital signal processing algorithms are crucial to differentiate actual targets from clutter and natural interference. These systems must filter out background noise, interpret multipath reflections, and accurately measure Doppler shifts to assess target velocity. Continuous innovation in these domains is essential for maintaining reliability and precision.
The Future of OTH Radar Technology
Looking ahead, OTH radar is poised to play a vital role in hypersonic missile defense due to its ability to detect fast, low-observable threats far in advance of traditional radar systems. Integration with space-based sensors, airborne platforms, and AI-enhanced data fusion networks will allow these systems to contribute to real-time battlefield awareness and cross-domain deterrence.
Miniaturization efforts are also underway, particularly for naval applications. Countries like China are already deploying compact, ship-based OTH radars, while Raytheon has filed patents for mobile configurations. These advances promise to extend the flexibility and reach of OTH technology, enabling rapid deployment and adaptive surveillance in contested zones.
